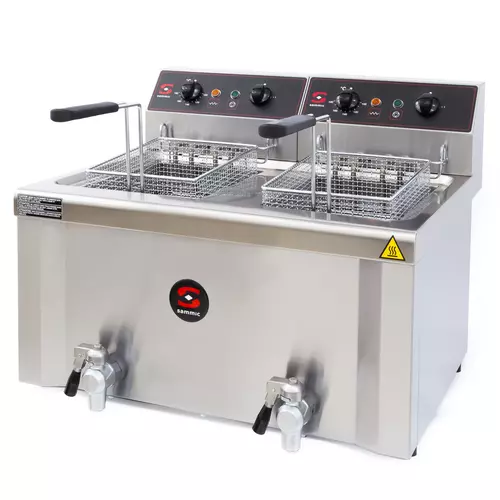

Commercial fryer: Electric fryer FE-9+9

Commercial fryer: Electric fryer FE-9+9

Commercial fryer: Electric fryer FE-9+9

Commercial fryer

FE-9+9

Welded tanks. Capacity: 8+8 l. Three-phase.

Welded tank commercial double electric fryer complete with drain taps.

Characteristics Characteristics
Benefits Benefits
Equipment Equipment
Documents Documents
Comparison Comparison
Video Video

Wash tank capacity	2 x 8 l
Total loading	12000 W
Electrical supply	400 V / 50-60 Hz / 3~
Basket dimensions	190 mm x 245 mm x 110 mm
External dimensions (W x D x H)	580 mm x 550 mm x 295 mm
Net weight	23 kg
Crated dimensions
	650 x 630 x 480 mm
Gross weight	26 kg

Spec sheet

Stainless steel made.
Welded tanks complete with drain tap.
Regulation thermostats.
Safety thermostats.

Equipment

Included with the machine

2 Baskets.

Documents

Spec sheet

Instructions

Fryer FE-8-9-12-15 (pdf)

Comparison

	Gastronorm series						Welded tank, tabletop						Welded tank with stand

	PF-6	PF-6+6	PF-10 (1~)	PF-10 (3~)	PF-10+10 (1~)	PF-10+10 (3~)	FE-8	FE-8+8	FE-9	FE-9+9	FE-12	FE-12+12	FE-15	FE-15+15
Buckets	1	2	1	1	2	2	1	2	1	2	1	2	1	2
Wash tank capacity	1 x 5 l	2 x 5 l	1 x 8 l	1 x 8 l	2 x 8 l	2 x 8 l	1 x 8 l	2 x 8 l	1 x 8 l	2 x 8 l	1 x 12 l	2 x 12 l	1 x 14 l	2 x 14 l
Total loading	3000 W	6000 W	[v:012_pot]	5100 W	[v:012_pot]	10200 W	3000 W	6000 W	6000 W	12000 W	9000 W	18000 W	9000 W	18000 W
Basket dimensions
Basket dimensions (width)	104 mm	104 mm	104 mm	104 mm	104 mm	104 mm	190 mm	190 mm	190 mm	190 mm	235 mm	235 mm	235 mm	235 mm
Basket dimensions (depth)	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	245 mm	245 mm	245 mm	245 mm	270 mm	270 mm	270 mm	270 mm
Basket dimensions (height)	220 mm	220 mm	220 mm	220 mm	220 mm	220 mm	110 mm	110 mm	110 mm	110 mm	115 mm	115 mm	105 mm	105 mm
External dimensions (W x D x H)
Width	265 mm	525 mm	265 mm	265 mm	525 mm	525 mm	290 mm	580 mm	290 mm	580 mm	400 mm	800 mm	375 mm	750 mm
Depth	430 mm	430 mm	475 mm	475 mm	475 mm	475 mm	550 mm	550 mm	550 mm	550 mm	700 mm	700 mm	655 mm	655 mm
Height	335 mm	335 mm	375 mm	375 mm	375 mm	375 mm	295 mm	295 mm	295 mm	295 mm	310 mm	310 mm	985 mm	985 mm
Net weight	6,5 kg	12 kg	8.5 kg	8.5 kg	[v:peso_neto]	16 kg	13 kg	19 kg	12.5 kg	23 kg	17 kg	32 kg	28 kg	53 kg
