Ice makers: Full, rounded ice cubes

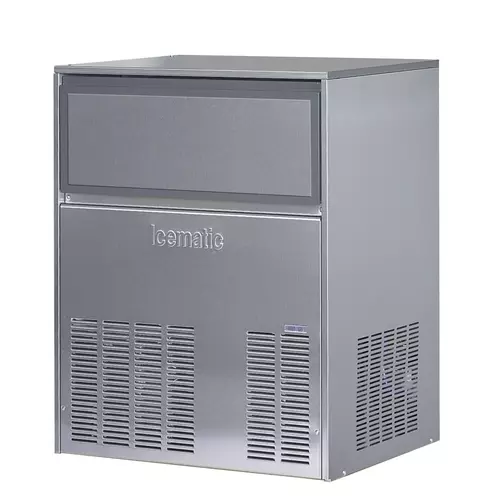

Gourmet Ice Maker NX65A
Cube of 40gr. Output of 69 kg/24h. Air cooled ice machine.
The NX ice cubers produce oversized full, round, compact and clear ice cubes. Thanks to their wide heat exchange surface, they allow a perfect cooling of every type of beverage.
| Air cooled | yes |
| Cube dimensions | |
| Cube dimensions: Ø43 mm x 40 mm | |
| Production in 24 h up to | 65 kg |
| Cube production per programme | 36 |
| Built-in tank | yes |
| Independent tank | no |
| Tank capacity | 30 kg |
| Total loading | 680 W |
| Electrical supply | 230 V / / 1~ |
| Water Intake | 3/4" |
| Drain diameter | Ø20 mm |
| External dimensions (W x D x H) | |
| Width | 699 mm |
| Depth | 536 mm |
| Height | 885 mm |
| height (with legs) | 1015 mm |
| Net weight | 66 kg |
Spec sheet
download
- Efficient and highly reliable ice cuber.
- Horizontal spray cube making system.
- AISI 430 Stainless steel body.
- Self contained 30 litres capacity storage bins ideal for high demand periods.
- The quantity of ice in the bin is thermostatically controlled.
- Automatic stop when bin is full.
- Wide door with guides in stainless steel and high density polyurethane: perfect insulation, space saving and easy access to ice.
- Clean water system in each cycle, guaranteeing best quality, hygienic and clear ice cubes.
- The surfaces in contact with water are treated with AgIon Silver Antimicrobial, a technology that provides built-in protection by naturally and continuously resisting the growth of microbes.
- Maximum performance thanks to the enhanced, hermetic compressor, designed to work in any type of ambient condition.
- Environment friendly refrigerant R 134a.
- Front side ventilation allows built-in installation.
- Evaporator safety probe: the machine stops if the detected temperature exEECds 70ºC.
- Scale prevention system.
- Scale and other minerals are collected in an accessible, easy to clean tray.
- Adjustable feet.
