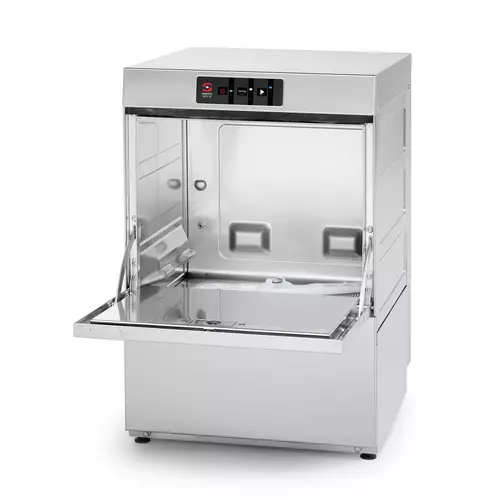

Commercial glasswasher
AX-40
Rack size 400 mm x 400 mm and door clearance 300 mm.
- Sani-Control: guaranteed disinfection.
- Embedded bodywork and easy-grip door: hygienic and ergonomic.
- Exclusive Hydroblade™ washing arms: maximum effectiveness.
- 3-stage filtering system.
- Double-walled body (partial).
| Basket dimensions | 400 mm x 400 mm |
| Useful height | 300 mm |
| Cycle duration | 120 / 150 / 210" (Optional: 90 / 120 / 180") |
| Production baskets / hour | 30 / 24 / 17 (Optional: 40 / 30 / 20) |
| Boiler capacity | 3.2 l |
| Wash tank capacity | 9 l |
| Water consumption/cycle | 2.2 l |
| Energy consumption | |
| Consumption/cycle (kWh) | 0,17 kWh |
| Tank filling consumption | 0,39 kWh |
| Loading | |
| Pump | 250 W / 0.33 Hp |
| Tank | 1200 W |
| Boiler | 2500 W |
| Total loading | 2750 W |
| Electrical connection | . |
| External dimensions (W x D x H) | |
| Width | 470 mm |
| Depth | 537 mm |
| Height | 710 mm |
| Noise level (1m.) | <69 dB(A) |
| Crated dimensions | |
| 525 x 615 x 820 mm | |
Spec sheet


Compact tank volume
Maximum efficiency

Hydroblade™ washing arms
Water savings, washing efficiency, strength and durability.

"Easy-on" surface filters
Extremely easy assembly and disassembly.

"Easy-grip" door
Design with integrated door handle.

Large capacity
300 mm door clearance. Add the double-height accessory and double your machine's output.
Sani-Control guarantee
- GUARANTEED DISINFECTION in compliance with standard DIN 10534.
- THERMAL LOCK function: ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.
New recessed bodywork
- Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
- Compact tank volume (50% water saving compared to the previous range).
- Embedded basket guides.
Hydroblade™ washing arms
- Redesigned nozzles for greater washing performance.
- The "monoblock" design delivers durability and resistance to impacts.
- 30% savings in water consumption during rinsing compared to the previous range.
3-stage filter system: surface, tank and extraction
- Keeps the washing water in optimal conditions to maintain constant washing performance.
- The surface filters feature an "easy-on" design and can be quickly removed without having to disconnect the washing arms.
"Easy grip" door: new design with integrated door handle
- Designed to have no corners or areas that are difficult to access: prevents deposits of dirt and facilitates cleaning.
- Its ergonomic handle provides a perfect grip, even with wet hands.
- 300 mm load capacity: high versatility for washing a wide range of glasses and even medium-sized dishes.
- Double-walled door with safety microswitch and high quality seal.
Warewashing, made simple
- Active Xperience: simple and intuitive use.
- Dedicated cycles: selection of the ideal washing programme using icons.
- Electronic control panel with IP65 humidity protection.
You will never WASH ALONE
- Tech Services: our team of technicians will help you so that your machine is always ready for use.
- Design Services: tell us what your needs are and we will advise you.
- 60 years of experience and know-how at your disposal.
Equipment
Included
- Rinse aid pump.
- 1 glasses basket.
- 1 mixed basket (plates).
- 1 small basket for cutlery.
Optional
- Detergent dosing kit.
- Overflow drainage pump. Tank water renewal by the principle of density.
- Double-level accessory for washing two baskets at the same time.
Available accessories

Manual water softeners
4 models available from 8 to 20 litres.

Automatic water softeners
Specially indicated for the restaurant industry and bars and any other application where water for industrial use is required.

400 x 400 mm baskets
400 x 400 mm baskets for glasses and plates.

Inserts & supplements
Available for different glass and dishwashers.

High feet kit
Stainless steel made high feet kit.

Reverse osmosis devices OS-140

Dosing equipments front AX / UX glass- and undercounter dishwashers
Specially designed for Sammic glass- and dishwashers.

Stand for 400 x 400 mm glasswashers
Specially designed for Sammic glasswashers.

Double rack kits for AX/UX
It allows to wash two baskets simultaneously.
Comparison
| ACTIVE | ULTRA | ||||
|---|---|---|---|---|---|
![]() | ![]() | ![]() | ![]() | ![]() | |
| AX-40 | UX-40 | UX-40C DD | UX-40 ISO | UX-40C ISO DD | |
| Features | |||||
| Basket dimensions | 400 x 400 mm | 400 x 400 mm | 400 x 400 mm | 400 x 400 mm | 400 x 400 mm |
| Useful height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Cold rinse option | - | yes | - | yes | - |
| Upper wash | yes | yes | yes | yes | yes |
| Electronic control panel | yes | yes | yes | yes | yes |
| Wash temperature display | - | yes | yes | yes | yes |
| Rinse temperature display | - | yes | yes | yes | yes |
| Wash tank capacity | 9 l | 9 l | 9 l | 9 l | 9 l |
| Double skin | - | opt. | opt. | yes | yes |
| Cycles | |||||
| Cycles | 3 | 5 | 5 | 5 | 5 |
| Cycle duration | 120 / 150 / 210" | 90 / 120 / 150 / 180" | 90 / 120 / 150 / 180" | 90 / 120 / 150 / 180" | 90 / 120 / 150 / 180" |
| Production baskets / hour | 30 / 24 / 17 | 40 / 30 / 24 / 20 | 40 / 30 / 24 / 20 | 40 / 30 / 24 / 20 | 40 / 30 / 24 / 20 |
| Loading | |||||
| Pump power | 0.33 Hp / 250 W | 0.33 Hp / 250 W | 0.33 Hp / 250 W | 0.33 Hp / 250 W | 0.33 Hp / 250 W |
| Tank | 1200 W | 1200 W | 1200 W | 1200 W | 1200 W |
| Boiler | 2500 W | 2800 W | 2800 W | 2800 W | 2800 W |
| Total loading | 2750 W | 3050 W | 3050 W | 3050 W | 3050 W |
| External dimensions (W x D x H) | |||||
| External dimensions (W x D x H) | 470 x 537 x 710 mm | 470 x 540 x 710 mm | 470 x 540 x 710 mm | 490 x 540 x 710 mm | 470 x 540 x 710 mm |
| Please note: the width of double skinned models increases by 20 mm. | |||||
| Data with water entry at 55ºC (recommended) | |||||
