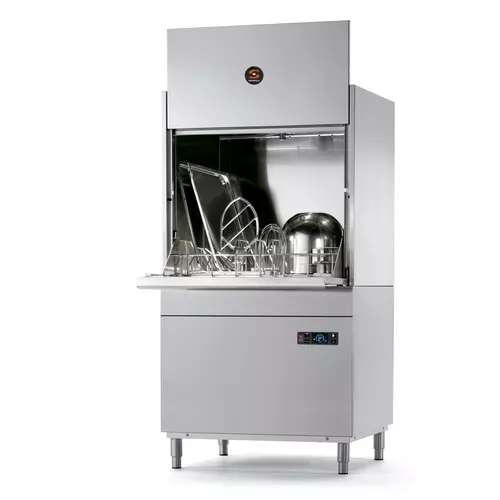

Pot washer
UX-750
Rack size 780 mm x 700 mm and door clearance 820 mm. Constant temperature rinsing system.
| Basket dimensions | 780 mm x 700 mm |
| Stainless steel basket | 1 |
| Equipment | supplementary trays: 1 |
| Useful height | 820 mm |
| Cycles | 5 |
| Cycle duration | 120 / 180 / 240 / 360 / 480" |
| Production baskets / hour | 30 / 20 / 15 / 10 / 7 |
| Pressure pump power | 9000 W |
| Electrical connection | . |
| Loading | |
| Pump | 3,2 Hp / 2400 W |
| Tank | 6000 W |
| Boiler | 9000 W |
| Total loading | 11400 W |
| Feed water temperature | 10ºC - 60ºC |
| Wash temperature | 40ºC - 70ºC |
| Rinse temperature | 70ºC - 87ºC |
| Wash tank capacity | 75 l |
| Boiler capacity | 12 l |
| Water consumption/cycle | 4 l |
| Drainage base maximum height | 185 mm |
| Drain diameter | 30 mm |
| External dimensions (W x D x H) | |
| Width | 922 mm |
| Depth (closed) | 932 mm |
| Depth (open) | 1400 mm |
| Height (closed) | 2015 mm |
| Height (open) | 2300 mm |
| Net weight | 216 kg |
| Noise level (1m.) | 76 dB(A) |
| Crated dimensions | |
| 960 x 1062 x 2000 mm | |
| Gross weight | 228 kg |
Spec sheet
download
Ideal to wash big sized pots and wares.
- Powerful and high pressure: specially indicated for restaurants, ice-cream shops, pastries and butcheries.
- Constructed from stainless steel.
- Door divided in two parts, perfectly counterbalanced, easy to handle.
- Double skinned machines: silent working and reduced thermical dispersions.
- Wash tank without corners to avoid dirt accumulation in angles.
- Stamped wash dispersers in stainless steel tubes.
- Easy to remove wash- and rinse dispersers.
- Safety micro switch at the door and electronic safety device to guarantee washing temperature and time.
- Advanced LCD control panel with humidity protection. Display of wash and rinse temperatures.
- Reduced water consumption.
Equipment
Included
- 1 stainless steel basket and insert for 4 trays.
- Detergent dosing equipment.
- Rinse aid pump.
Optional
- Stainless basket.
- Stainless carrier for trays.
Available accessories
Stainless steel baskets
Specially designed for Sammic ware-washers.
Manual water softeners
4 models available from 8 to 20 litres.
Automatic water softeners
Specially indicated for the restaurant industry and bars and any other application where water for industrial use is required.
Dosing equipments
Specially designed for Sammic utensil washers.
Carrier for trays
Specially designed for Sammic ware-washers.
documents placeholder
Comparison
 |  |  | ||||
|---|---|---|---|---|---|---|
| UX-600 | UX-750 | UX-1300 | ||||
| Basket dimensions | 600 x 630 mm | 780 x 700 mm | 1320 x 700 mm | |||
| Useful height | 650 mm | 820 mm | 820 mm | |||
| Cycles | ||||||
| Cycles | 5 | 5 | 5 | |||
| Cycle duration | 120 / 180 / 240 / 360 / 480" | 120 / 180 / 240 / 360 / 480" | 120 / 180 / 240 / 360 / 480" | |||
| Production baskets / hour | 30 / 20 / 15 / 10 / 7 | 30 / 20 / 15 / 10 / 7 | 30 / 20 / 15 / 10 / 7 | |||
| Loading | ||||||
| Pump | 3 Hp / 2200 W | 3,2 Hp / 2400 W | 3 Hp / 2 x 2200 W | |||
| Tank | 6000 W | 6000 W | 9000 W | |||
| Boiler | 9000 W | 9000 W | 12000 W | |||
| Total loading | 11200 W | 11400 W | 16400 W | |||
| External dimensions (W x D x H) | ||||||
| External dimensions (W x D x H) | 742 x 852 x 1843 mm | 922 x 932 x 2015 mm | 1465 x 930 x 2015 mm | |||
| Depth (open) | 1232 mm | 1400 mm | 1374 mm | |||
| Height (open) | 2035 mm | 2300 mm | 2330 mm | |||
| Net weight | 168 kg | 216 kg | 322 kg | |||
| Data with water entry at 55ºC (recommended) | ||||||
